ABAP面向对象中类的层次结构

在一个面向对象数据库模式中，会出现许多个相似但又有所不同的类。

例如，教员职工和学生两个类都有身份证号，姓名，年龄，性别，住址等属性，也有些相同的方法。当然，教职工和学生对象中有一些特殊的属性和方法。教职员工和学生的公共属性和方法部分可以统一定义，各自的特殊属性和方法部分可以分别定义。为此，面向对象数据结构给出了类层次结构！

下面给出一个案例：

1. REPORT yleon_002.

2. TYPE-POOLS icon.

3.

4. INCLUDE yleon_002_a.

5.

6. DATA: r_plane     TYPE REF TO lcl_airplane,

7.       r_cargo     TYPE REF TO lcl_cargo_plane,

8.       r_passenger TYPE REF TO lcl_passenger_plane,

9.       plane_list  TYPE TABLE OF REF TO lcl_airplane.

10.

11. START-OF-SELECTION.

12.

13.   lcl_airplane=>display_n_o_airplanes( ).

14.   CREATE OBJECT r_passenger

15.     EXPORTING

16.       im_name      = 'LH BERLIN'

17.       im_planetype = '747-400'

18.       im_seats     = 345.

19.   CREATE OBJECT r_cargo

20.     EXPORTING

21.       im_name      = 'US Hercules'

22.       im_planetype = '747-500'

23.       im_cargo     = 533.

24.   r_cargo->display_attributes( ).

25.   r_passenger->display_attributes( ).

26.   lcl_airplane=>display_n_o_airplanes( ).

复制代码

1. *&---------------------------------------------------------------------*

2. *&  包含                YLEON_002_A

3. *&---------------------------------------------------------------------*

4. CLASS lcl_airplane DEFINITION.

5.   PUBLIC SECTION.

6.     CONSTANTS: pos_1 TYPE i VALUE 30.

7.     METHODS: constructor IMPORTING im_name      TYPE string

8.                                    im_planetype TYPE saplane-planetype,

9.       display_attributes.

10.     CLASS-METHODS: display_n_o_airplanes.

11.

12.   PRIVATE SECTION.

13.     METHODS: get_technical_attributes

14.       IMPORTING im_type    TYPE saplane-planetype

15.       EXPORTING ex_weight  TYPE s_plan_wei

16.                 ex_tankcap TYPE s_capacity.

17.     DATA: name      TYPE string,

18.           planetype TYPE saplane-planetype.

19.     CLASS-DATA: n_o_airplanes TYPE i.

20. ENDCLASS. "lcl_airplane DEFINITION

21.

22. CLASS lcl_airplane IMPLEMENTATION.

23.   METHOD constructor.

24.     name = im_name.

25.     planetype = im_planetype.

26.     n_o_airplanes = n_o_airplanes + 1.

27.   ENDMETHOD. "constructor

28.   METHOD display_attributes.

29.     DATA: weight TYPE saplane-weight,

30.           cap    TYPE saplane-tankcap.

31.     WRITE: / icon_ws_plane AS ICON,

32.     / 'Name of airplane'(001), AT pos_1 name,

33.     / 'Airplane type: '(002), AT pos_1 planetype.

34.     get_technical_attributes( EXPORTING im_type = planetype

35.                               IMPORTING ex_weight = weight

36.                               ex_tankcap = cap ).

37.     WRITE: / 'Weight:'(003), weight,

38.     'Tank capacity:'(004), cap.

39.   ENDMETHOD. "display_attributes

40.   METHOD display_n_o_airplanes.

41.     WRITE: /, / 'Number of airplanes: '(ca1),

42.     AT pos_1 n_o_airplanes LEFT-JUSTIFIED, /.

43.   ENDMETHOD. "display_n_o_airplanes

44.   METHOD get_technical_attributes.

45.     SELECT SINGLE weight tankcap FROM saplane

46.     INTO (ex_weight, ex_tankcap)

47.     WHERE planetype = im_type.

48.     IF sy-subrc <> 0.

49.       ex_weight = 100000.

50.       ex_tankcap = 10000.

51.     ENDIF.

52.   ENDMETHOD. "get_technical_attributes

53. ENDCLASS. "lcl_airplane IMPLEMENTATION

54.

55. CLASS lcl_cargo_plane DEFINITION INHERITING FROM lcl_airplane.

56.   PUBLIC SECTION.

57.     METHODS: constructor IMPORTING im_name      TYPE string

58.                                    im_planetype TYPE saplane-planetype

59.                                    im_cargo     TYPE scplane-cargomax.

60.     METHODS: display_attributes REDEFINITION.

61.     METHODS: get_cargo RETURNING VALUE(re_cargo) TYPE scplane-cargomax.

62.   PRIVATE SECTION.

63.     DATA: max_cargo TYPE scplane-cargomax.

64. ENDCLASS. "lcl_cargo_plane DEFINITION

65. CLASS lcl_cargo_plane IMPLEMENTATION.

66.   METHOD constructor.

67.     CALL METHOD super->constructor( im_name = im_name im_planetype = im_planetype ).

68.     max_cargo = im_cargo.

69.   ENDMETHOD. "constructor

70.   METHOD display_attributes.

71.     super->display_attributes( ).

72.     WRITE: / 'Max Cargo = ', max_cargo.

73.     ULINE.

74.   ENDMETHOD. "display_attributes

75.   METHOD get_cargo.

76.     re_cargo = max_cargo.

77.   ENDMETHOD. "get_cargo

78. ENDCLASS. "lcl_cargo_plane IMPLEMENTATION

79. CLASS lcl_passenger_plane DEFINITION INHERITING FROM lcl_airplane..

80.   PUBLIC SECTION.

81.     METHODS: constructor IMPORTING im_name      TYPE string

82.                                    im_planetype TYPE saplane-planetype

83.                                    im_seats     TYPE sflight-seatsmax.

84.     METHODS: display_attributes REDEFINITION.

85.   PRIVATE SECTION.

86.     DATA: max_seats TYPE sflight-seatsmax.

87. ENDCLASS. "lcl_passenger_plane DEFINITION

88.

89. CLASS lcl_passenger_plane IMPLEMENTATION.

90.   METHOD constructor.

91.     CALL METHOD super->constructor(

92.       EXPORTING

93.         im_name      = im_name

94.         im_planetype = im_planetype ).

95.     max_seats = im_seats.

96.   ENDMETHOD. "constructor

97.   METHOD display_attributes.

98.     super->display_attributes( ).

99.     WRITE: / 'Max Seats = ', max_seats.

100.     ULINE.

101.   ENDMETHOD. "display_attributes

102. ENDCLASS. "lcl_passenger_plane IMPLEMENTATION

复制代码

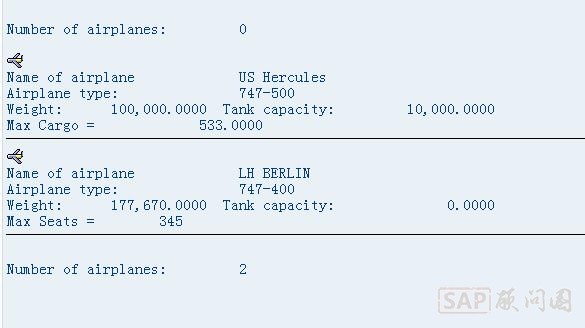

测试结果：
