[Tree] 通过右键菜单完成Tree Control 节点的增删改功能

Twilight发表于 2014-01-22 17:03Twilight 最后回复于 2014-01-22 17:03 [复制链接] 4162 0

Tree 节点的增删改是很重要的功能，包括：增加本级节点，增加子节点，修改节点，删除节点。完成后效果如下：

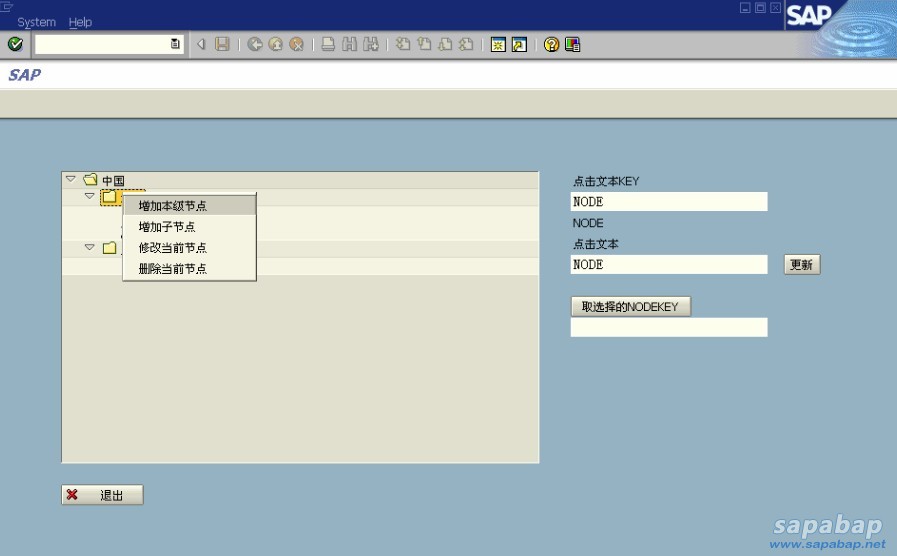

选择根节点，单击右键，弹出右键菜单，如选择“北京”节点，选择“增加本级节点”菜单，如图所示。

右键完成Tree Control 节点的增删改功能1.jpg

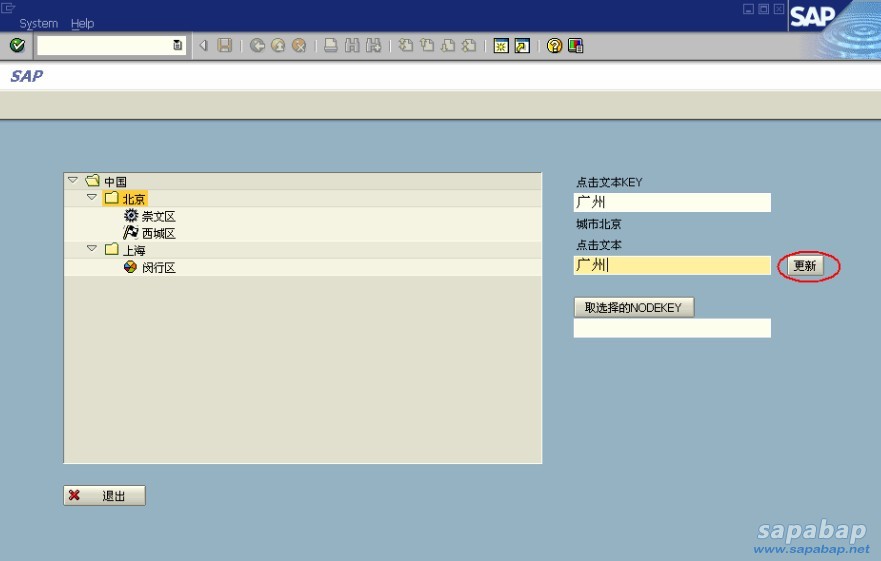

在单击文本输入“广州”后，单击“更新”按钮，如图所示。

右键完成Tree Control 节点的增删改功能2.jpg

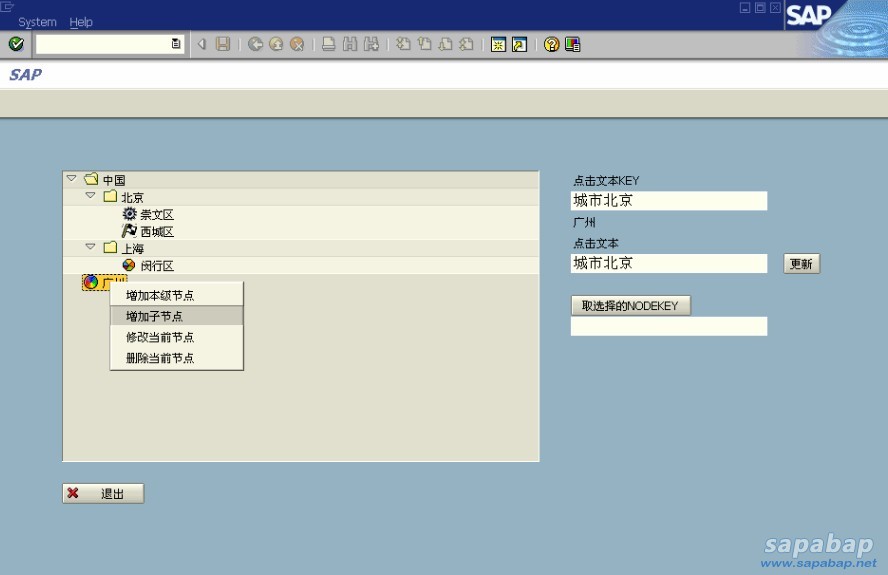

Tree 对象增加了“广州”节点，选择该节点，选右键菜单中“增加子节点”菜单，如图所示。

右键完成Tree Control 节点的增删改功能3.jpg

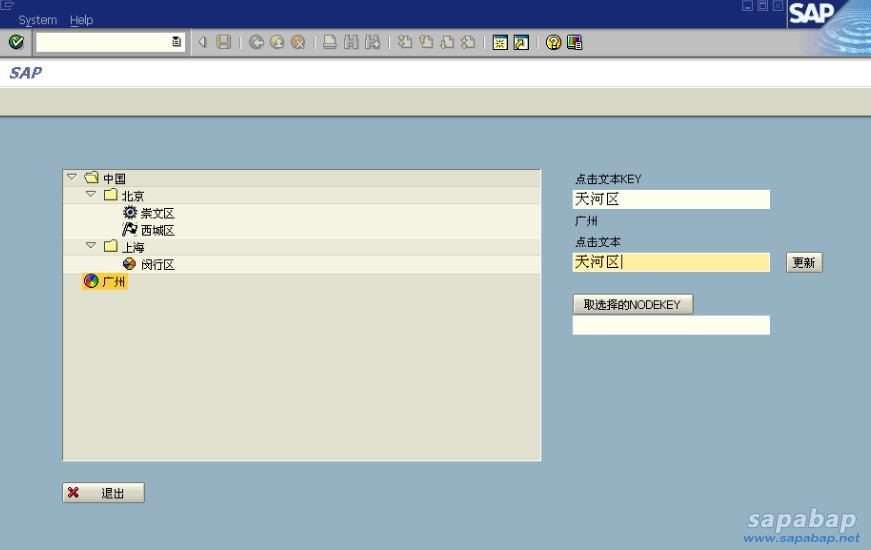

输入“天河区”，单击“更新”按钮，如所示。

右键完成Tree Control 节点的增删改功能4.jpg

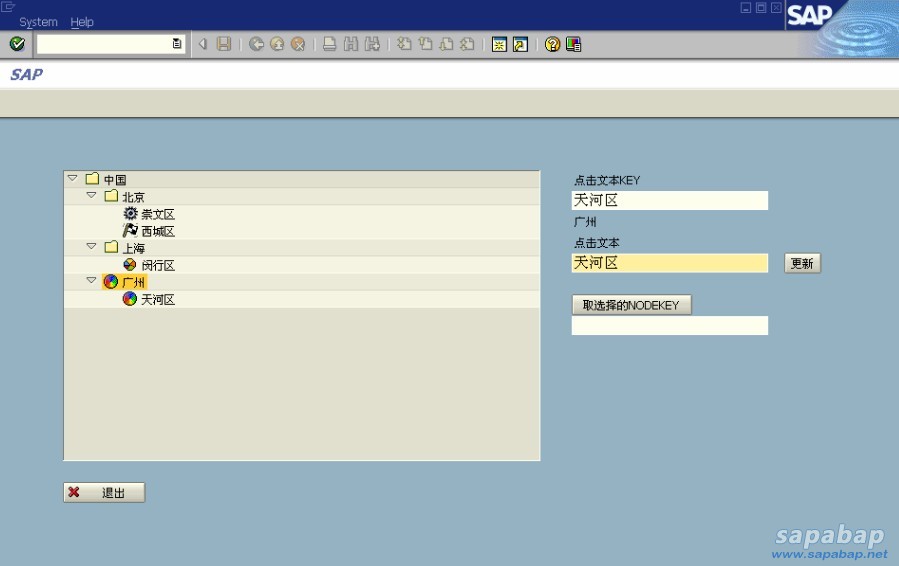

增加节点后，输出结果如图所示。

右键完成Tree Control 节点的增删改功能5.jpg

除上述功能外，还有修改及删除节点等功能。

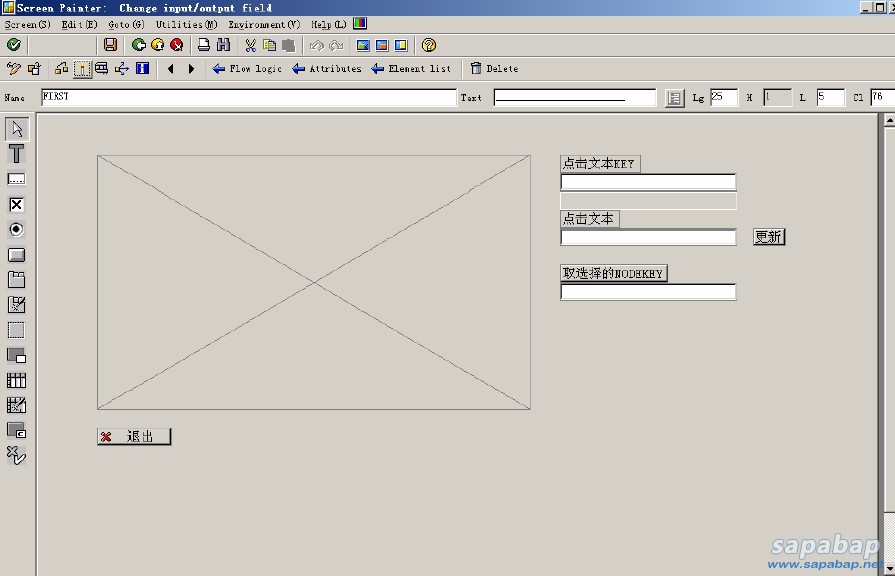

设计 Screen 界面如所示。
右键完成Tree Control 节点的增删改功能6.jpg

主程序：
  1. REPORT  ZDEMON_011.
  2. DATA: OK_CODE TYPE SY-UCOMM,
  3. SAVE_OK TYPE SY-UCOMM.
  4. DATA: WA_CONTAINER TYPE SCRFNAME VALUE 'TREE1',
  5. WA_CUSTOM_CONTAINER TYPE REF TO CL_GUI_CUSTOM_CONTAINER,
  6. WA_TREE TYPE REF TO CL_GUI_SIMPLE_TREE.
  7. DATA: NODE_TABLE LIKE TABLE OF MTREESNODE,
  8. ANODE_TABLE LIKE TABLE OF MTREESNODE,
  9. NODE1 TYPE MTREESNODE,
  10. NODE2 TYPE MTREESNODE.
  11. DATA WA_SPFLI TYPE TABLE OF SPFLI.
  12. DATA: NODEKEY(200) VALUE 'NODE',
  13. NODETEXT(200) VALUE 'NODE',
  14. NODEKEYOLD(200) VALUE 'NODE',
  15. GETKEY(200).
  16. DATA MENUSTR(10) VALUE ''.
  17. CLASS LCL_APPLICATION DEFINITION DEFERRED.
  18. *---------------------------------------------------------------------*
  19. * CLASS lcl_application DEFINITION
  20. *---------------------------------------------------------------------*
  21. *
  22. *---------------------------------------------------------------------*
  23. CLASS LCL_APPLICATION DEFINITION.
  24. PUBLIC SECTION.
  25. METHODS: HANDLE_NODE_DOUBLE_CLICK
  26. FOR EVENT NODE_DOUBLE_CLICK
  27. OF CL_GUI_SIMPLE_TREE
  28. IMPORTING NODE_KEY.
  29. METHODS:
  30. HANDLE_NODE_CONTEXT_MENU_REQ
  31. FOR EVENT NODE_CONTEXT_MENU_REQUEST
  32. OF CL_GUI_SIMPLE_TREE
  33. IMPORTING NODE_KEY MENU,
  34. HANDLE_NODE_CONTEXT_MENU_SEL
  35. FOR EVENT NODE_CONTEXT_MENU_SELECT
  36. OF CL_GUI_SIMPLE_TREE
  37. IMPORTING NODE_KEY FCODE.
  38. ENDCLASS. "LCL_APPLICATION DEFINITION
  39. *---------------------------------------------------------------------*
  40. * CLASS lcl_application IMPLEMENTATION
  41. *---------------------------------------------------------------------*
  42. *
  43. *---------------------------------------------------------------------*
  44. CLASS LCL_APPLICATION IMPLEMENTATION.
  45. METHOD HANDLE_NODE_DOUBLE_CLICK.
  46. NODEKEY = NODE_KEY.
  47. READ TABLE NODE_TABLE WITH KEY NODE_KEY = NODE_KEY INTO NODE1.
  48. NODETEXT = NODE1-TEXT.
  49. ENDMETHOD. "HANDLE_NODE_DOUBLE_CLICK
  50. METHOD HANDLE_NODE_CONTEXT_MENU_REQ.
  51. CALL METHOD MENU->ADD_FUNCTION
  52. EXPORTING
  53. TEXT = '增加本级节点'
  54. FCODE = 'CODE1'.
  55. CALL METHOD MENU->ADD_FUNCTION
  56. EXPORTING
  57. TEXT = '增加子节点'
  58. FCODE = 'CODE2'.
  59. CALL METHOD MENU->ADD_FUNCTION
  60. EXPORTING
  61. TEXT = '修改当前节点'
  62. FCODE = 'CODE3'.
  63. CALL METHOD MENU->ADD_FUNCTION
  64. EXPORTING
  65. TEXT = '删除当前节点'
  66. FCODE = 'CODE4'.
  67. ENDMETHOD. "handle_node_context_menu_req
  68. METHOD HANDLE_NODE_CONTEXT_MENU_SEL.
  69. DATA STR1 TYPE TV_NODEKEY.
  70. CALL METHOD WA_TREE->GET_SELECTED_NODE
  71. IMPORTING
  72. NODE_KEY = STR1.
  73. IF SY-SUBRC = 0.
  74. MENUSTR = FCODE.
  75. NODEKEY = STR1.
  76. NODEKEYOLD = STR1.
  77. READ TABLE NODE_TABLE WITH KEY NODE_KEY = STR1 INTO NODE1.
  78. NODETEXT = NODE1-TEXT.
  79. IF FCODE = 'CODE4'.
  80. CALL METHOD WA_TREE->DELETE_NODE
  81. EXPORTING
  82. NODE_KEY = NODE1-NODE_KEY.
  83. DELETE NODE_TABLE WHERE NODE_KEY = NODEKEY.
  84. ENDIF.
  85. ENDIF.
  86. ENDMETHOD. "handle_node_context_menu_sel
  87. ENDCLASS. "lcl_application IMPLEMENTATION
  88. *自定义定义对象实例
  89. DATA: G_APPLICATION TYPE REF TO LCL_APPLICATION.
  90. START-OF-SELECTION.
  91. CALL SCREEN 100.
  92. *&---------------------------------------------------------------------*
  93. *& Module STATUS_0100 OUTPUT
  94. *&---------------------------------------------------------------------*
  95. * text
  96. *----------------------------------------------------------------------*
  97. MODULE STATUS_0100 OUTPUT.
  98. * SET PF-STATUS 'xxxxxxxx'.
  99. * SET TITLEBAR 'xxx'.
  100. IF WA_CUSTOM_CONTAINER IS INITIAL.
  101. CREATE OBJECT G_APPLICATION.
  102. PERFORM CREATE_TREE.
  103. ENDIF.
  104. ENDMODULE. " STATUS_0100 OUTPUT
  105. *&---------------------------------------------------------------------*
  106. *& Module USER_COMMAND_0100 INPUT
  107. *&---------------------------------------------------------------------*
  108. * text
  109. *----------------------------------------------------------------------*
  110. MODULE USER_COMMAND_0100 INPUT.
  111. DATA STR1 TYPE TV_NODEKEY.
  112. SAVE_OK = OK_CODE.
  113. CLEAR OK_CODE.
  114. CASE SAVE_OK.
  115. WHEN 'EXIT'.
  116. LEAVE PROGRAM.
  117. WHEN 'GETKEY'.
  118. CALL METHOD WA_TREE->GET_SELECTED_NODE
  119. IMPORTING
  120. NODE_KEY = STR1.
  121. IF SY-SUBRC EQ 0.
  122. GETKEY = STR1.
  123. ENDIF.
  124. WHEN 'UPTREE'.
  125. IF ( MENUSTR = 'CODE1' ) OR ( MENUSTR = 'CODE2').
  126. READ TABLE NODE_TABLE
  127. WITH KEY NODE_KEY = NODEKEY INTO NODE1.
  128. IF SY-SUBRC EQ 0.
  129. MESSAGE E208(00) WITH '键值重复！'.
  130. ENDIF.
  131. ENDIF.
  132. CASE MENUSTR.
  133. WHEN 'CODE1'.
  134. READ TABLE NODE_TABLE WITH KEY NODE_KEY = NODEKEYOLD
  135. INTO NODE2.
  136. CLEAR NODE1.
  137. NODE1-NODE_KEY = NODEKEY.
  138. NODE1-RELATKEY = NODE2-RELATKEY.
  139. NODE1-RELATSHIP = CL_GUI_SIMPLE_TREE=>RELAT_LAST_CHILD.
  140. NODE1-HIDDEN = ''.
  141. NODE1-DISABLED = ''.
  142. NODE1-ISFOLDER = 'X'.
  143. NODE1-N_IMAGE = '@G3@'.
  144. NODE1-EXP_IMAGE = '@G3@'.
  145. CLEAR NODE1-EXPANDER.
  146. NODE1-TEXT = NODETEXT.
  147. APPEND NODE1 TO NODE_TABLE.
  148. CLEAR ANODE_TABLE.
  149. APPEND NODE1 TO ANODE_TABLE.
  150. CALL METHOD WA_TREE->ADD_NODES
  151. EXPORTING
  152. TABLE_STRUCTURE_NAME = 'MTREESNODE'
  153. NODE_TABLE = ANODE_TABLE.
  154. IF SY-SUBRC <> 0.
  155. * MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
  156. * WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  157. ENDIF.
  158. WHEN 'CODE2'.
  159. CLEAR NODE1.
  160. NODE1-NODE_KEY = NODEKEY.
  161. NODE1-RELATKEY = NODEKEYOLD..
  162. NODE1-RELATSHIP = CL_GUI_SIMPLE_TREE=>RELAT_LAST_CHILD.
  163. NODE1-HIDDEN = ''.
  164. NODE1-DISABLED = ''.
  165. NODE1-ISFOLDER = 'X'.
  166. NODE1-N_IMAGE = '@G3@'.
  167. NODE1-EXP_IMAGE = '@G3@'.
  168. CLEAR NODE1-EXPANDER.
  169. NODE1-TEXT = NODETEXT.
  170. APPEND NODE1 TO NODE_TABLE.
  171. CLEAR ANODE_TABLE.
  172. APPEND NODE1 TO ANODE_TABLE.
  173. CALL METHOD WA_TREE->ADD_NODES
  174. EXPORTING
  175. TABLE_STRUCTURE_NAME = 'MTREESNODE'
  176. NODE_TABLE = ANODE_TABLE.
  177. IF SY-SUBRC <> 0.
  178. * MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
  179. * WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  180. ENDIF.
  181. WHEN 'CODE3'.
  182. NODE1-NODE_KEY = NODEKEYOLD.
  183. CALL METHOD WA_TREE->NODE_SET_TEXT
  184. EXPORTING
  185. NODE_KEY = NODE1-NODE_KEY
  186. TEXT = NODETEXT.
  187. IF SY-SUBRC <> 0.
  188. * MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
  189. * WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  190. ENDIF.
  191. ENDCASE.
  192. ENDCASE.
  193. ENDMODULE. " USER_COMMAND_0100 INPUT
  194. *&---------------------------------------------------------------------*
  195. *& Form CREATE_TREE
  196. *&---------------------------------------------------------------------*
  197. * text
  198. *----------------------------------------------------------------------*
  199. * --> p1 text
  200. * <-- p2 text
  201. *----------------------------------------------------------------------*
  202. FORM CREATE_TREE .
  203. DATA: EVENTS TYPE CNTL_SIMPLE_EVENTS,
  204. EVENT1 TYPE CNTL_SIMPLE_EVENT.
  205. CREATE OBJECT WA_CUSTOM_CONTAINER
  206. EXPORTING
  207. CONTAINER_NAME = WA_CONTAINER.
  208. CREATE OBJECT WA_TREE
  209. EXPORTING
  210. PARENT = WA_CUSTOM_CONTAINER
  211. NODE_SELECTION_MODE = CL_GUI_SIMPLE_TREE=>NODE_SEL_MODE_SINGLE.
  212. IF SY-SUBRC <> 0.
  213. * MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
  214. * WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  215. ENDIF.
  216. CLEAR NODE1.
  217. NODE1-NODE_KEY = '国家'.
  218. CLEAR NODE1-RELATKEY.
  219. CLEAR NODE1-RELATSHIP.
  220. NODE1-HIDDEN = ''.
  221. NODE1-DISABLED = ''.
  222. NODE1-ISFOLDER = 'X'.
  223. CLEAR NODE1-N_IMAGE.
  224. CLEAR NODE1-EXP_IMAGE.
  225. CLEAR NODE1-EXPANDER.
  226. NODE1-TEXT = '中国'.
  227. APPEND NODE1 TO NODE_TABLE.
  228. CLEAR NODE1.
  229. NODE1-NODE_KEY = '城市北京'.
  230. NODE1-RELATKEY = '国家'.
  231. NODE1-RELATSHIP = CL_GUI_SIMPLE_TREE=>RELAT_LAST_CHILD.
  232. NODE1-HIDDEN = ''.
  233. NODE1-DISABLED = ''.
  234. NODE1-ISFOLDER = 'X'.
  235. CLEAR NODE1-N_IMAGE.
  236. CLEAR NODE1-EXP_IMAGE.
  237. CLEAR NODE1-EXPANDER.
  238. NODE1-TEXT = '北京'.
  239. APPEND NODE1 TO NODE_TABLE.
  240. CLEAR NODE1.
  241. NODE1-NODE_KEY = '城市上海'.
  242. NODE1-RELATKEY = '国家'.
  243. NODE1-RELATSHIP = CL_GUI_SIMPLE_TREE=>RELAT_LAST_CHILD.
  244. NODE1-HIDDEN = ''.
  245. NODE1-DISABLED = ''.
  246. NODE1-ISFOLDER = 'X'.
  247. CLEAR NODE1-N_IMAGE.
  248. CLEAR NODE1-EXP_IMAGE.
  249. CLEAR NODE1-EXPANDER.
  250. NODE1-TEXT = '上海'.
  251. APPEND NODE1 TO NODE_TABLE.
  252. CLEAR NODE1.
  253. NODE1-NODE_KEY = 'KEY 崇文区'.
  254. NODE1-RELATKEY = '城市北京'.
  255. NODE1-RELATSHIP = CL_GUI_SIMPLE_TREE=>RELAT_LAST_CHILD.
  256. NODE1-HIDDEN = ''.
  257. NODE1-DISABLED = ''.
  258. NODE1-ISFOLDER = ''.
  259. *图标，可运行SHOWICON查阅
  260. NODE1-N_IMAGE = '@9Y@'.
  261. NODE1-EXP_IMAGE = '@9Y@'.
  262. CLEAR NODE1-EXPANDER.
  263. NODE1-TEXT = '崇文区'.
  264. APPEND NODE1 TO NODE_TABLE.
  265. CLEAR NODE1.
  266. NODE1-NODE_KEY = 'KEY 西城区'.
  267. NODE1-RELATKEY = '城市北京'.
  268. NODE1-RELATSHIP = CL_GUI_SIMPLE_TREE=>RELAT_LAST_CHILD.
  269. NODE1-HIDDEN = ''.
  270. NODE1-DISABLED = ''.
  271. NODE1-ISFOLDER = ''.
  272. NODE1-N_IMAGE = '@DF@'.
  273. NODE1-EXP_IMAGE = '@DF@'.
  274. CLEAR NODE1-EXPANDER.
  275. NODE1-TEXT = '西城区'.
  276. APPEND NODE1 TO NODE_TABLE.
  277. CLEAR NODE1.
  278. NODE1-NODE_KEY = 'KEY 闵行区'.
  279. NODE1-RELATKEY = '城市上海'.
  280. NODE1-RELATSHIP = CL_GUI_SIMPLE_TREE=>RELAT_LAST_CHILD.
  281. NODE1-HIDDEN = ''.
  282. NODE1-DISABLED = ''.
  283. NODE1-ISFOLDER = ''.
  284. NODE1-N_IMAGE = '@NL@'.
  285. NODE1-EXP_IMAGE = '@NL@'.
  286. CLEAR NODE1-EXPANDER.
  287. NODE1-TEXT = '闵行区'.
  288. APPEND NODE1 TO NODE_TABLE.
  289. *按照节得内容掏加节得
  290. CALL METHOD WA_TREE->ADD_NODES
  291. EXPORTING
  292. TABLE_STRUCTURE_NAME = 'MTREESNODE'
  293. NODE_TABLE = NODE_TABLE
  294. * EXCEPTIONS
  295. * ERROR_IN_NODE_TABLE = 1
  296. * FAILED = 2
  297. * DP_ERROF = 3
  298. * TABLE_STRUCTURE_NAME_NOT_FOUND = 4
  299. * OTHERS = 5
  300. .
  301. IF SY-SUBRC <> 0.
  302. * MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
  303. * WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  304. ENDIF.
  305. CALL METHOD WA_TREE->EXPAND_NODE
  306. EXPORTING
  307. NODE_KEY = '国家'
  308. EXPAND_SUBTREE = 'X'
  309. EXCEPTIONS
  310. FAILED = 1
  311. ILLEGAL_LEVEL_COUNT = 2
  312. CNTL_SYSTEM_ERROR = 3
  313. NODE_NOT_FOUND = 4
  314. CANNOT_EXPAND_LEAF = 5.
  315. IF SY-SUBRC NE 0.
  316. ENDIF.
  317. *定义双击事件
  318. EVENT1-EVENTID = CL_GUI_SIMPLE_TREE=>EVENTID_NODE_DOUBLE_CLICK.
  319. EVENT1-APPL_EVENT = 'X'.
  320. APPEND EVENT1 TO EVENTS.
  321. EVENT1-EVENTID = CL_GUI_SIMPLE_TREE=>EVENTID_NODE_CONTEXT_MENU_REQ.
  322. EVENT1-APPL_EVENT = ''.
  323. APPEND EVENT1 TO EVENTS.
  324. CALL METHOD WA_TREE->SET_CTX_MENU_SELECT_EVENT_APPL
  325. EXPORTING
  326. APPL_EVENT = 'X'.
  327. *添加事件内表
  328. CALL METHOD WA_TREE->SET_REGISTERED_EVENTS
  329. EXPORTING
  330. EVENTS = EVENTS
  331. * EXCEPTIONS
  332. * CNTL_ERROR = 1
  333. * CNTL_SYSTEM_ERROR = 2
  334. * ILLEGAL_EVENT_COMBINATION = 3
  335. * OTHERS = 4
  336. .
  337. IF SY-SUBRC <> 0.
  338. * MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
  339. * WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  340. ENDIF.
  341. *将已定义的双击事件分配至树对象
  342. SET HANDLER G_APPLICATION->HANDLE_NODE_DOUBLE_CLICK FOR WA_TREE.
  343. SET HANDLER G_APPLICATION->HANDLE_NODE_CONTEXT_MENU_REQ FOR WA_TREE.
  344. SET HANDLER G_APPLICATION->HANDLE_NODE_CONTEXT_MENU_SEL FOR WA_TREE.
  345. ENDFORM. " CREATE_TREE
复制代码




tree control, 右键

相关帖子
回复

使用道具 举报

Twilight

管理员

+发表新主题
  1. 847 主题
  2. 125 回帖
  3. 11270 积分
发消息

Ta最近发表

快速回帖

本版积分规则
高级模式
B Color Image Link Quote Code Smilies
您需要登录后才可以回帖 登录 | 注册有礼

小黑屋|手机版|SAP顾问圈 ( 沪ICP备18020878号 )

GMT+8, 2024-12-23 06:23 , Processed in 0.049093 second(s), 6 queries , Gzip On, Redis On.

© 2014-2017 SAPclubDesign by Twilight.Liu®X3.5

平台客服 1204767879 无客服码

快速回复 返回顶部 返回列表
